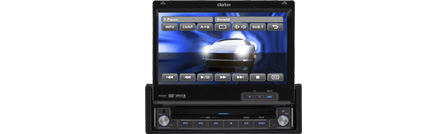

| 规格: 7英寸触控屏幕2-DIN尺DVD多媒体工作站 |
 |
| 售价: RMB￥0.00 元 |
|
|
| |
|
产品概述 |
功能规格 |
实物照片 |
产品视频 |
PDF说明书 |
交易记录 |
用户评价 |
|
|
QVGA 品质，顶级娱乐享受
VZ409A 的特点
|
|
|
| MONITOR SECTION |
| Screen Size (W × H), mm |
153 × 87 (7 inch) |
| Aspect Ratio |
− |
| Display Type |
Transmission type TN liquid crystal display |
| Drive Principle |
TFT (thin-film transistor) active matrix driving |
| Number of Pixels |
336,960 |
| VRC Video Input |
1.0 ± 0.2 Vp-p (input impedance 75 ) |
| VRC Audio Input |
130 ± 60 Vrms (input impedance 10 k or greater) |
| TUNER SECTION |
| Frequency Bands |
|
| FM: (MHz) 0.05 MHz steps |
87 to 108 |
| AM: (kHz) 9 kHz steps |
531 to 1629 |
| DVD SECTION |
| Useable Discs |
DVD video / DVD±R / RW |
| Frequency Response (Hz) |
20 to 20,000 (+1 dB, -1 dB) |
| Distortion (%) |
0.006 |
| CD SECTION |
| Wow/Flutter (WRMS) |
− |
| S/N Ratio (dB) 1 kHz |
− |
| Frequency Response (Hz) |
20 to 20,000 (+1 dB, -3 dB) |
| Dynamic Range (dB) 1 kHz |
− |
| Harmonic Distortion (%) |
− |
| AUDIO SECTION |
| Power Output (DIN45324, +B = 14.4 V) |
4 × 40 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 50 × 165 |
| Weight (kg) |
2.15 |
| Power Consumption |
4.0 A (at 1W) |
| Power Requirement |
14.4 V DC (10.8 ~ 15.6 V) |
| Speaker Impedance |
4 Ω (4 Ω to 8 Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
