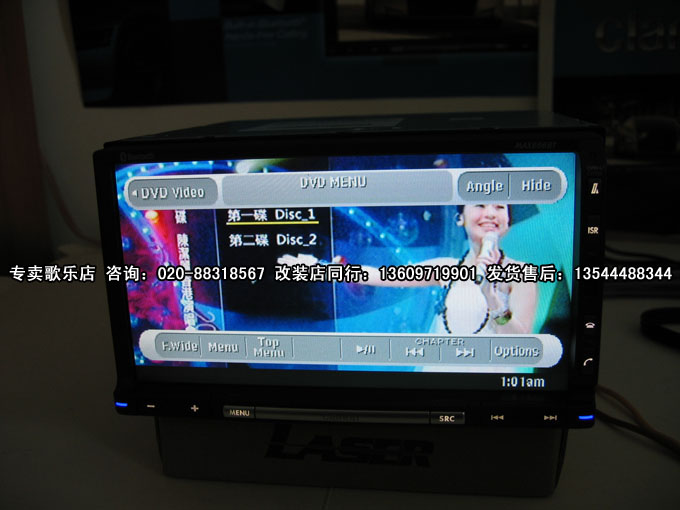

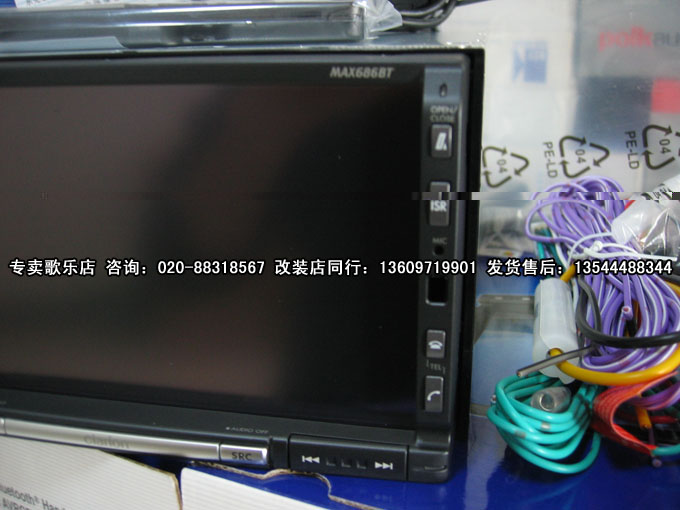

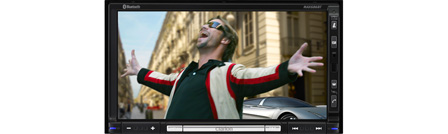

| 规格: 2-Din尺寸 7 触摸屏含DVD播放器,Bluetooth/ USB/ CeNET |
 |
| 售价: RMB￥7,200.00 元 |
|
|
| |
|
产品概述 |
功能规格 |

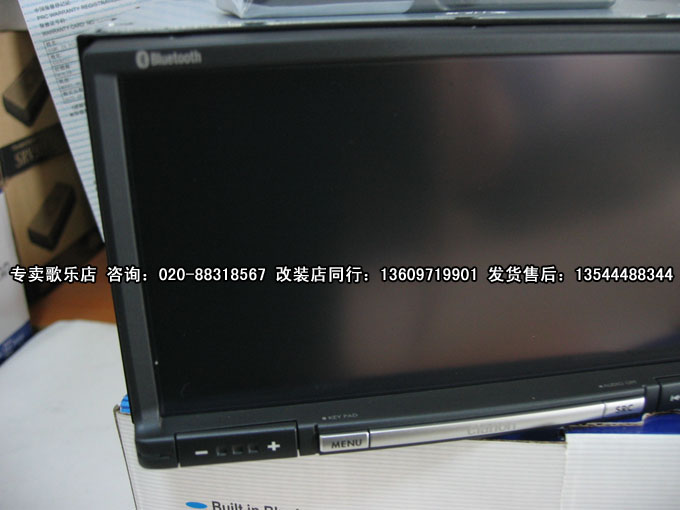

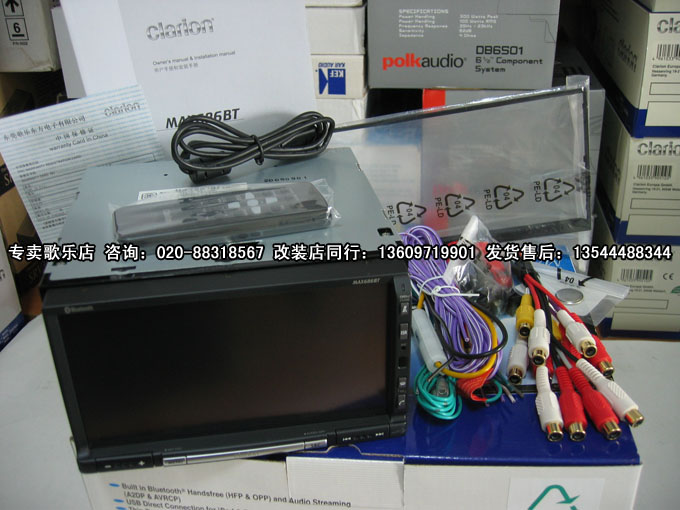

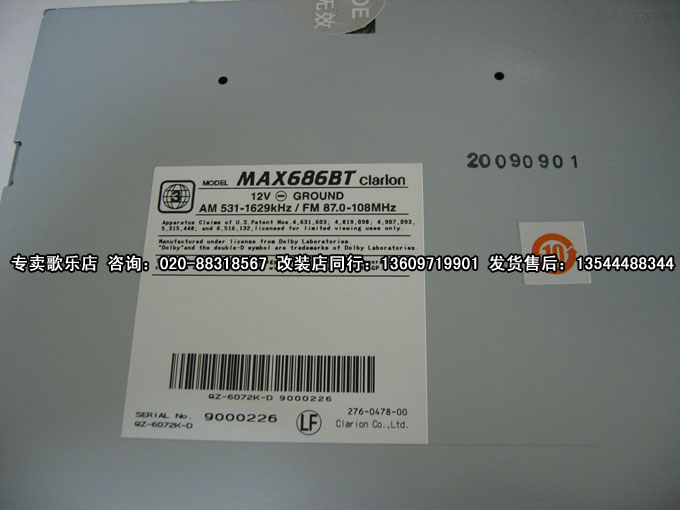

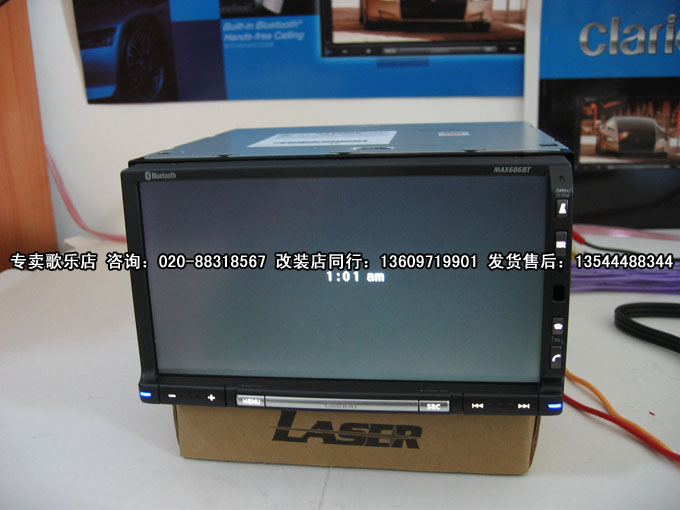

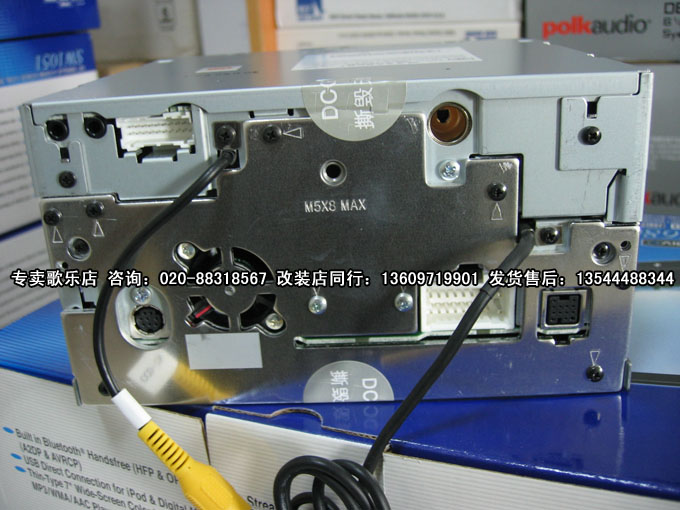

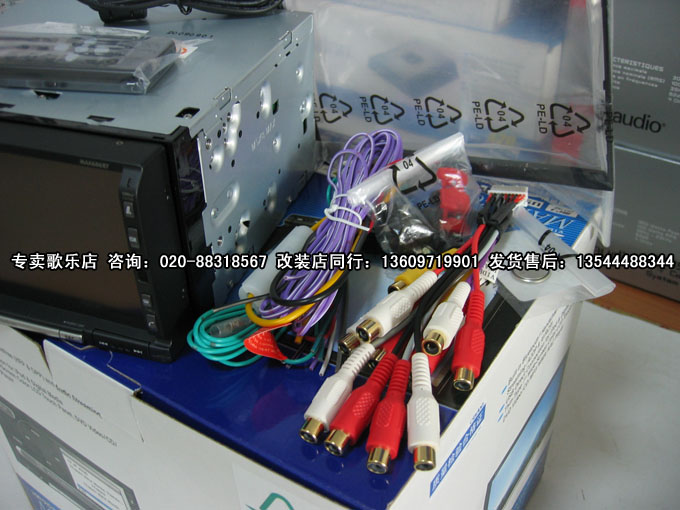

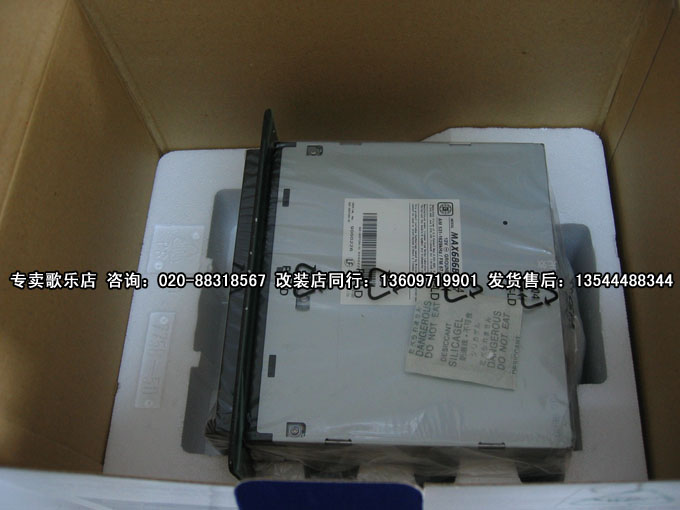

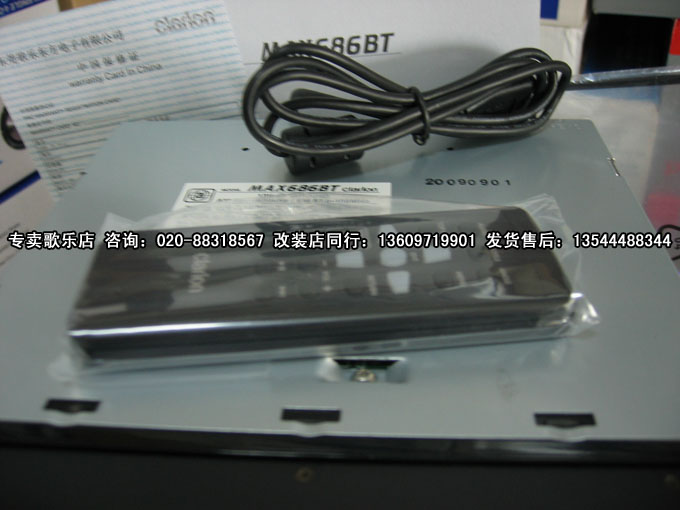

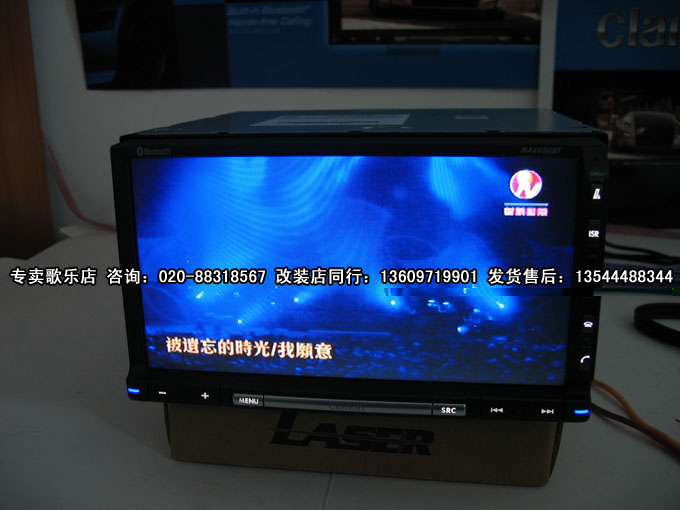

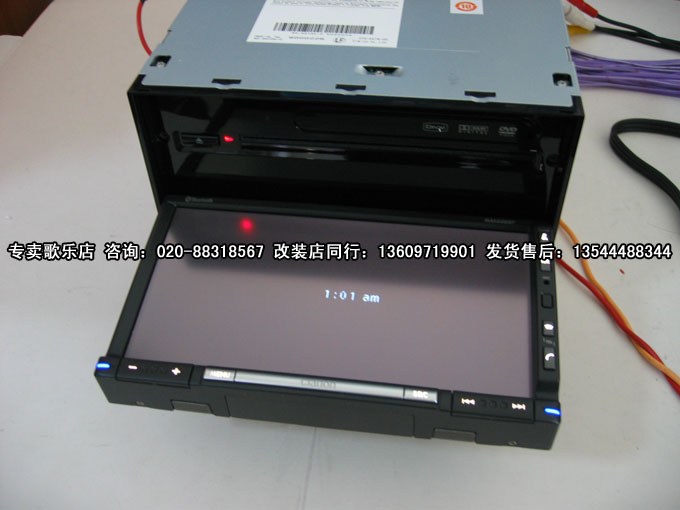

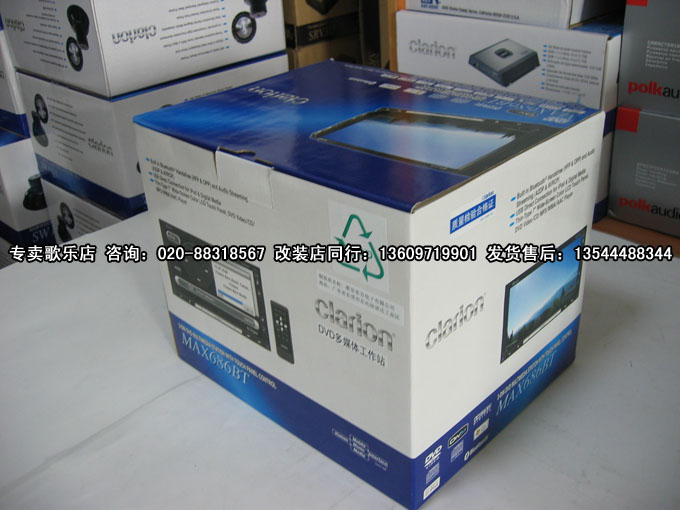

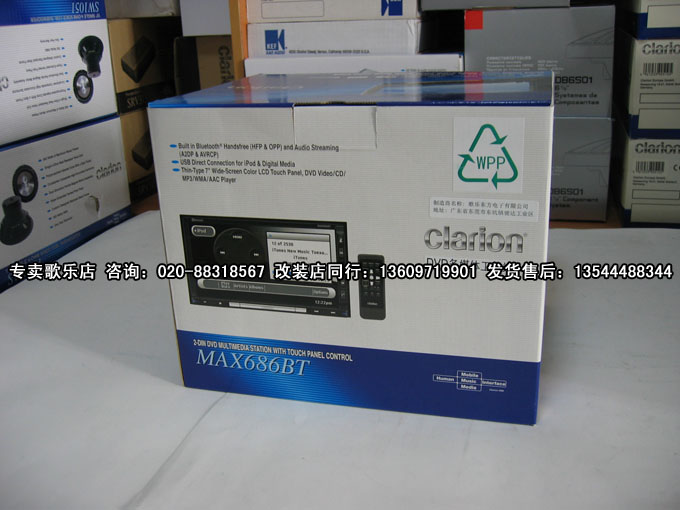

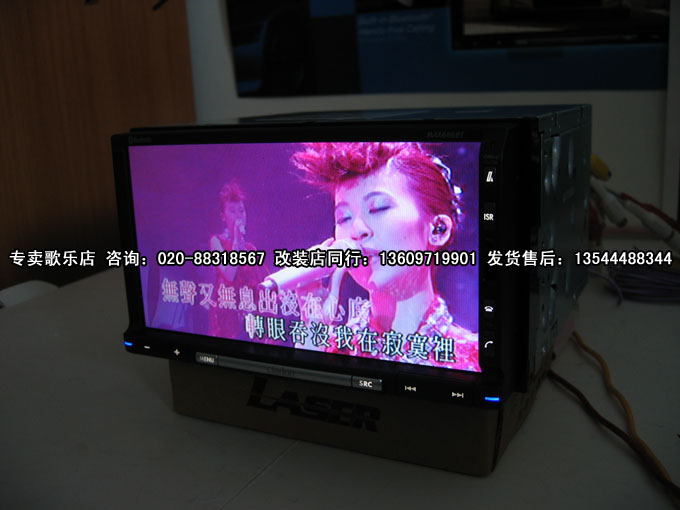

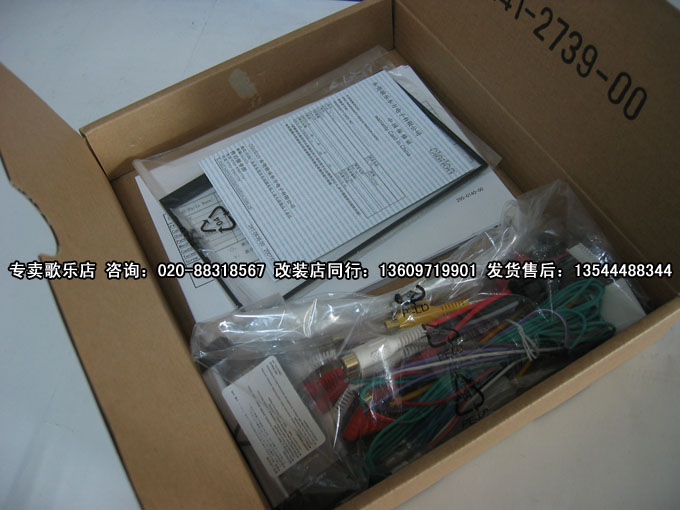

实物照片 |

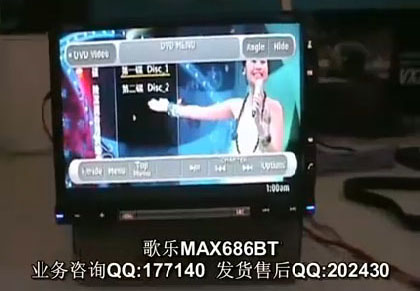

产品视频 |

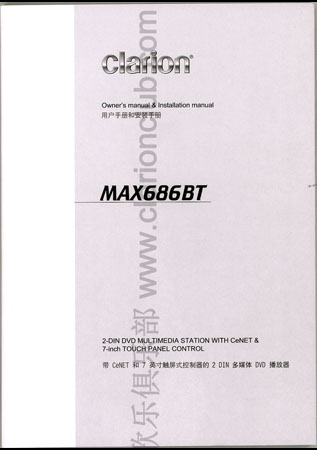

PDF说明书 |
交易记录 |
用户评价 |
|
|
- 可播放DVD-Video/DVD±R/DVD±RW/CD-DA/CD-R/RW
- 可播放所有版本的DivX®视频内容(包括DivX®6), 以标准再生模式播放DivX®媒体文件
- 用于串流数字媒体(后方USB)的WMDRM10播放
- 内藏无线蓝牙(HFP&OPP)和音频串流(A2DP&AVRCP)
* VRX786BT/MAX686BT可播放DVD±R/DVD±RW/CD-R/RW上MP3/WMA/AAC/DivX
格式文件。最大乐曲容量:999曲(255个文件夹，每个文件夹最多有255曲)
* VRX786BT/MAX686BT可播放USB上MP3/WMA/AAC格式文件。最大乐曲容量:
130,560曲(512个文件夹，每个文件夹最多255曲)
* iPod视频兼容不能播放带音乐文件和视频文件的PLAY LIST。
iPod® 直接插入USB槽
* 请用USB电缆连接iPod
* 播放视频请用CCA723电缆
* 关于可连接使用的iPod机型请查看歌乐网站
6声道音频前置输出
|
|
|
| MONITOR SECTION |
| Screen Size (W × H), mm |
155.4 × 81.6 (7 inch) |
| Display Type |
Transmission type TN liquid crystal display |
| Drive Principle |
TFT (thin-film transistor) active matrix display |
| Number of Pixels |
336,960 |
| VRC Video Input |
1.0 ± 0.2 Vp-p (input impedance 75 Ω) |
| VRC Audio Input |
130 ± 60 mVrms (input impedance 10 kΩ or greater) |
| TUNER SECTION |
| Frequency Bands |
|
| FM: (MHz) 0.05 MHz steps |
87.5 to 108 |
| AM: (kHz) 9 kHz steps |
531 to 1,602 |
| DVD SECTION |
| Useable Discs |
DVD video / DVD±R / RW |
| Frequency Response (Hz) |
20 to 20,000 (48 kHz) (+1 dB, -1 dB) |
| Region code |
2 |
| Distortion (%) |
0.006 |
| CD SECTION |
| Wow/Flutter (WRMS) |
Below measurable limit |
| S/N Ratio (dB) 1 kHz |
100 |
| Frequency Response (Hz) |
20 to 20,000 (+1 dB, -1 dB) |
| Dynamic Range (dB) 1 kHz |
100 |
| Harmonic Distortion (%) |
0.006 |
| AUDIO SECTION |
| Power Output (DIN45324, +B = 14.4 V) |
4 × 20 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 100 × 160 |
| Weight (kg) |
2.7 |
| Power Consumption |
4.0 A (at 1 W) |
| Power Requirement |
14.4 V DC (10.8 ∼ 15.6 V) |
| Speaker Impedance |
4 Ω (4 Ω to 8 Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
