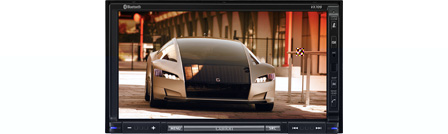

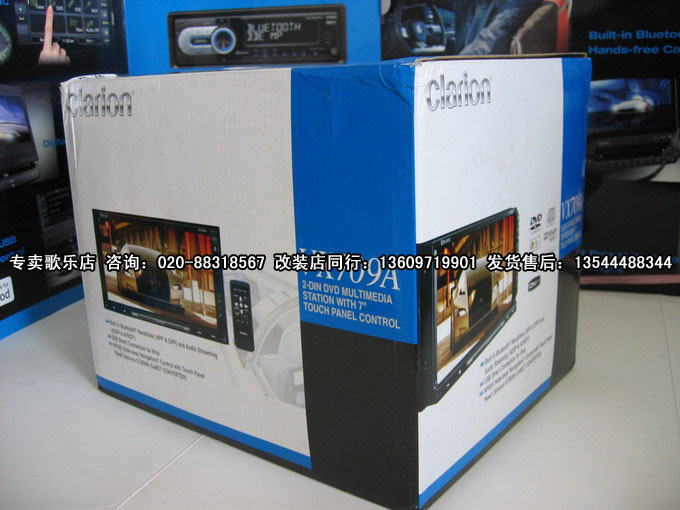

| 规格: 带7英寸触摸屏控制的2-DIN DVD多媒体中心 |
 |
| 售价: RMB￥7,200.00 元 |
|
|
| |
|
产品概述 |
功能规格 |

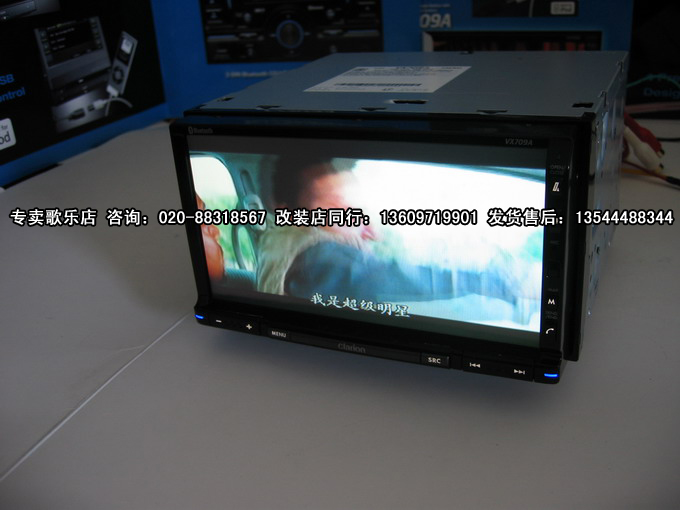

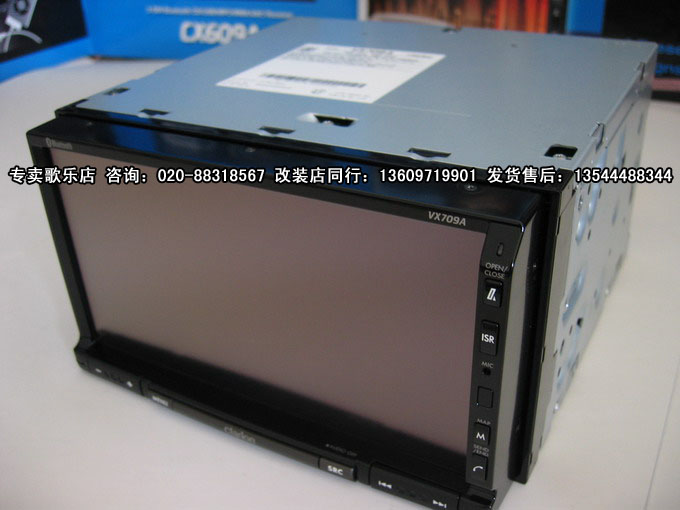

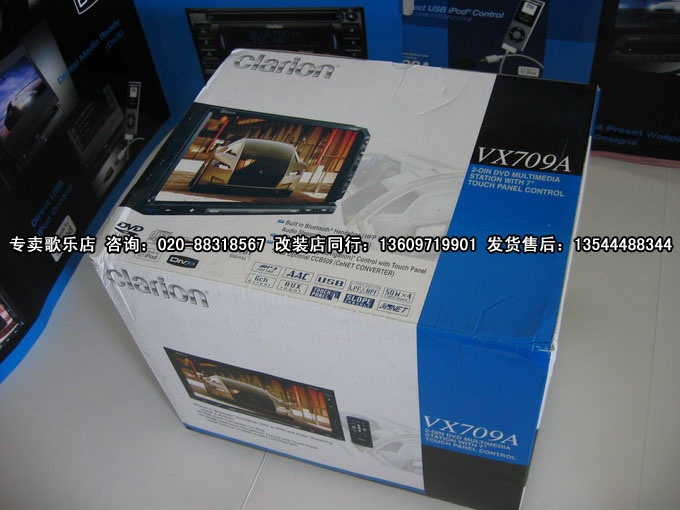

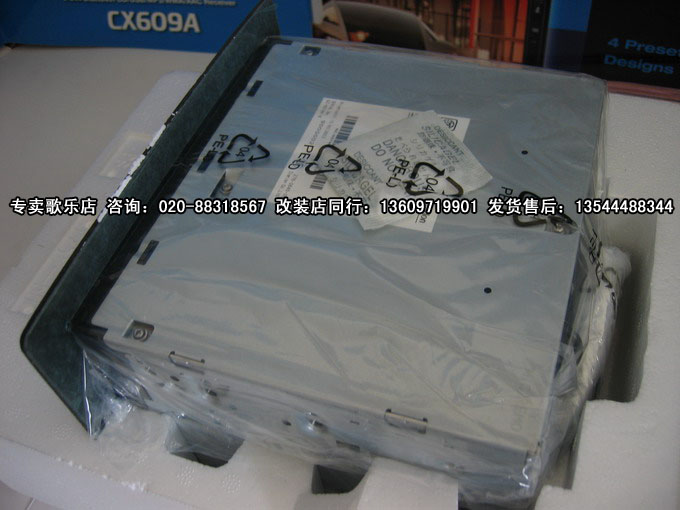

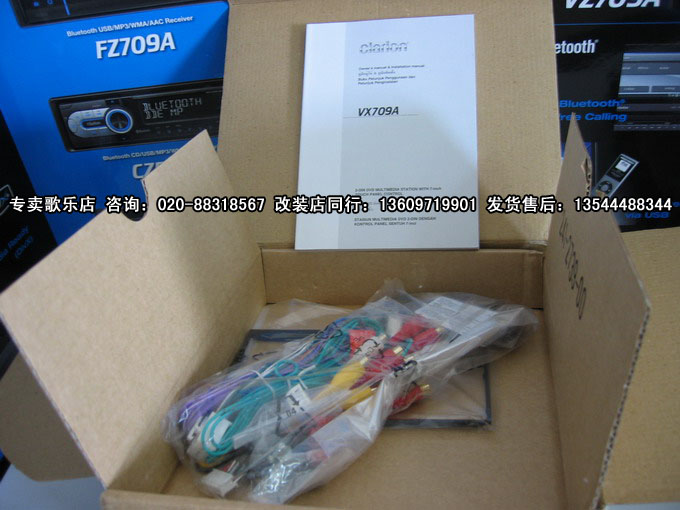

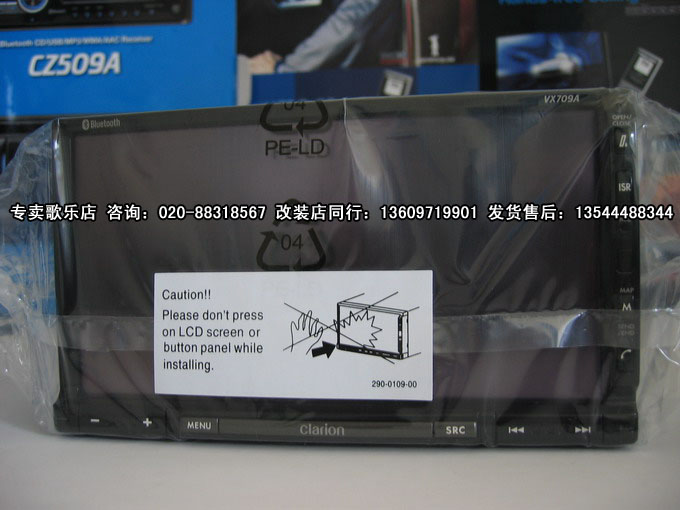

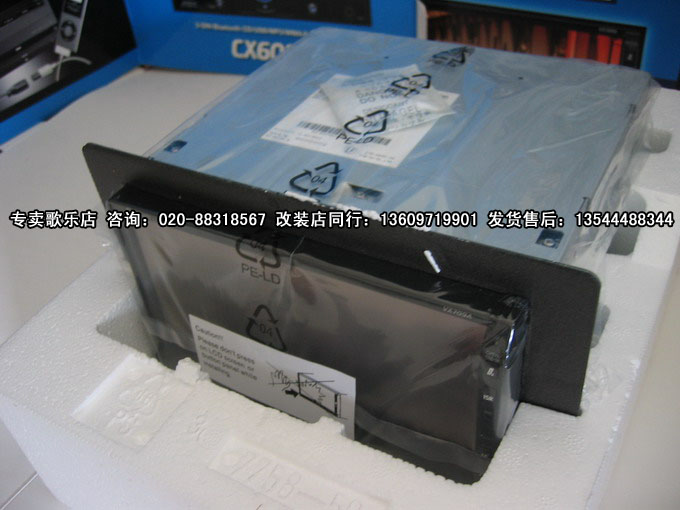

实物照片 |
产品视频 |

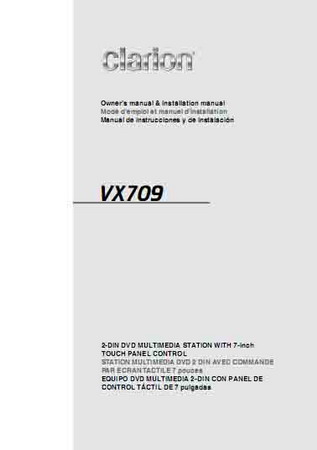

PDF说明书 |

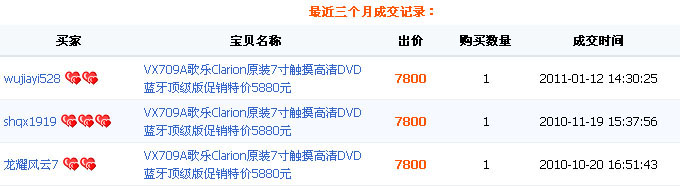

交易记录 |
用户评价 |
|
|
娱乐功能齐全，直观界面和2-DIN 格式
- DVD-Video/DVD±R/DVD±RW/CD/CD-R/RW/Video-CD
- 内置蓝牙®免提（HFP & OPP）和音频流 (A2DP & AVRCP)
- 支持 ID3-TAG 显示的 MP3/WMA/AAC
- 可用各种版本的 DivX 视频播放器（包括 DivX 6） 以标准形式播放 DivX 媒体文件

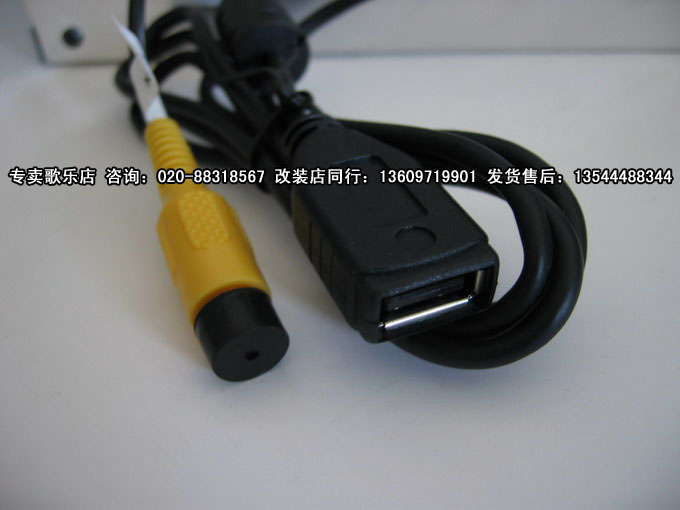

- iPod 直接控制（可选配 iPod 视频播放所需的 CCA723 电缆）

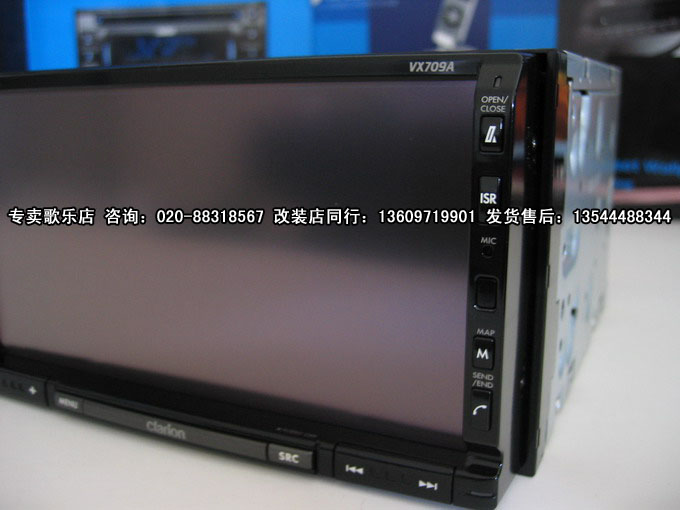

- 带 7 英寸 QVGA 色 LCD 监视器的电动倾斜式控制板
|
|
|
| MONITOR SECTION |
| Screen Size (W × H), mm |
155.4 × 81.6 (7 inch) |
| Aspect Ratio |
− |
| Display Type |
Transmission type TN liquid crystal display |
| Drive Principle |
TFT (thin-fi lm transistor) active matrix display |
| Number of Pixels |
336,960 |
| VRC Video Input |
1.0 ± 0.2 Vp-p (input impedance 75 Ω) |
| VRC Audio Input |
130 ± 60 mVrms (input impedance 10 kΩ or greater) |
| TUNER SECTION |
| Frequency Bands |
|
| FM: (MHz) 0.05 MHz steps |
87.5 to 108 |
| AM: (kHz) 9 kHz steps |
531 to 1,602 |
| DVD SECTION |
| Useable Discs |
DVD video / DVD±R / RW |
| Frequency Response (Hz) |
20 to 20,000 (+1 dB, -1 dB) |
| Distortion (%) |
0.006 |
| CD SECTION |
| Wow/Flutter (WRMS) |
Below measurable limit |
| S/N Ratio (dB) 1 kHz |
100 |
| Frequency Response (Hz) |
20 to 20,000 (+1 dB, -1 dB) |
| Dynamic Range (dB) 1 kHz |
100 |
| Harmonic Distortion (%) |
0.006 |
| AUDIO SECTION |
| Power Output (DIN45324, +B = 14.4 V) |
4 × 27 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 100 × 160 |
| Weight (kg) |
2.7 |
| Power Consumption |
4.0 A (at 1 W) |
| Power Requirement |
14.4 V DC (10.8 ∼ 15.6 V) |
| Speaker Impedance |
4 Ω (4 Ω to 8 Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
