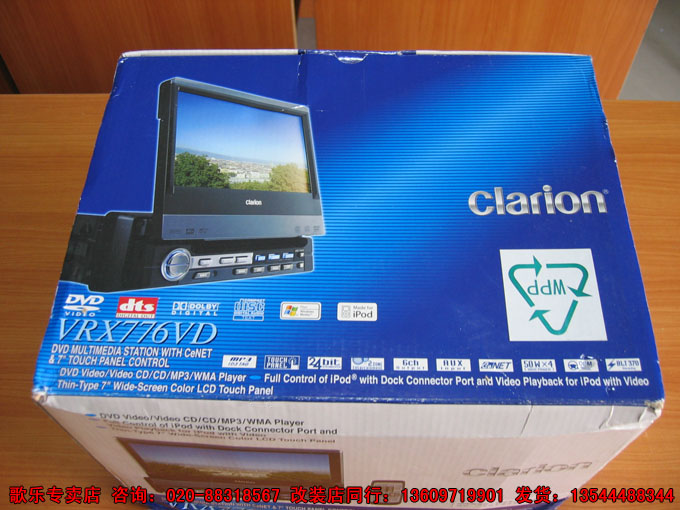

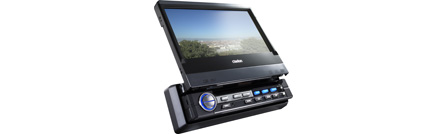

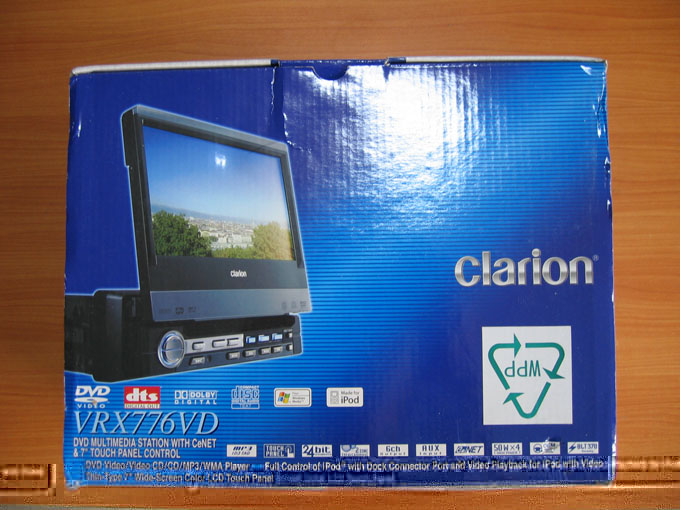

| 规格: DVD多媒体工作站, 配带7英寸CeNET触控屏幕连控 |
 |
| 售价: RMB￥6,600.00 元 |
|
|
| |
|
产品概述 |
功能规格 |

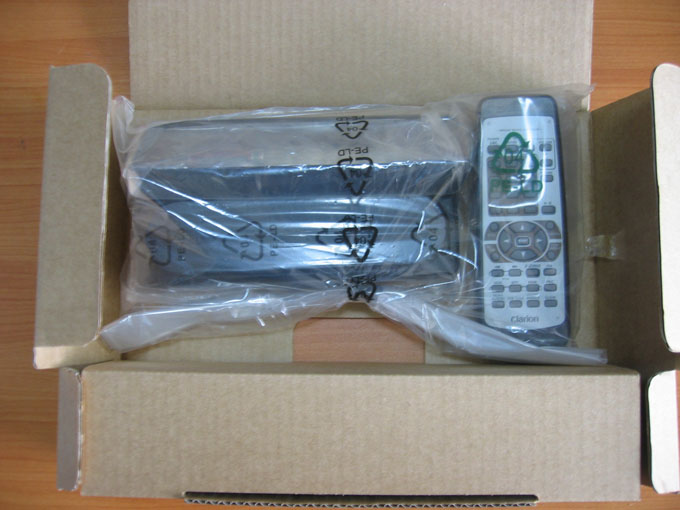

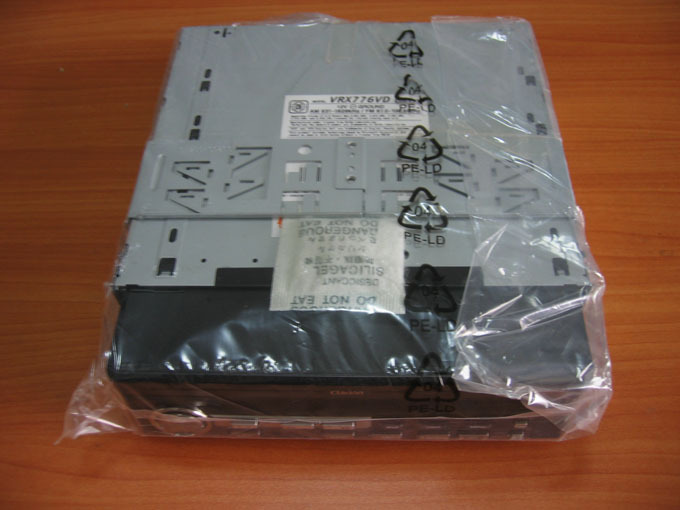

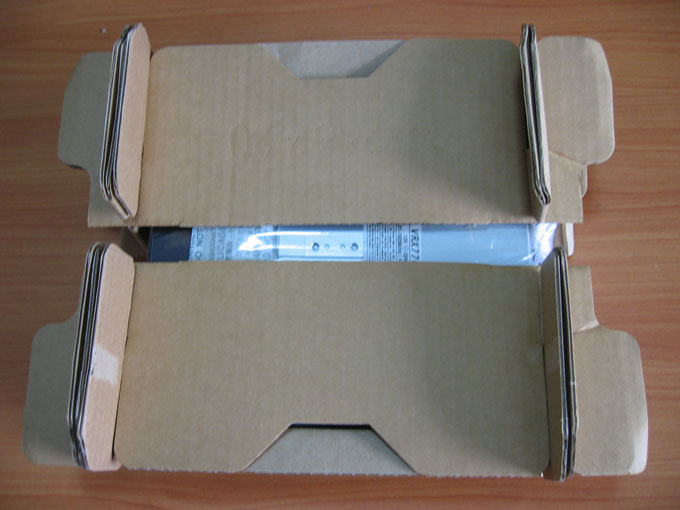

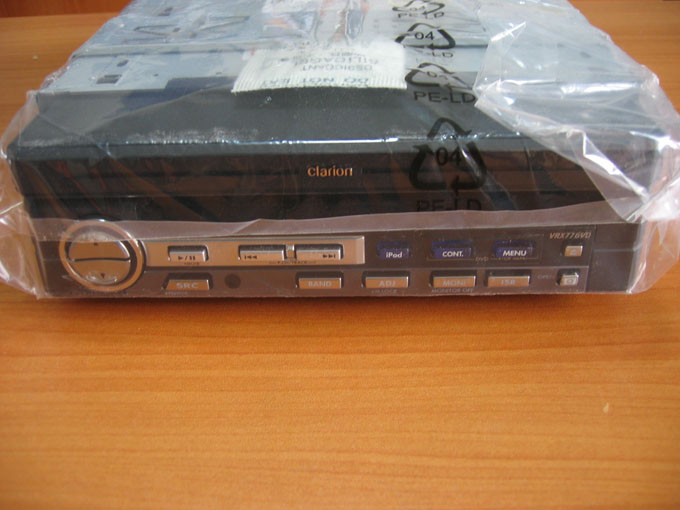

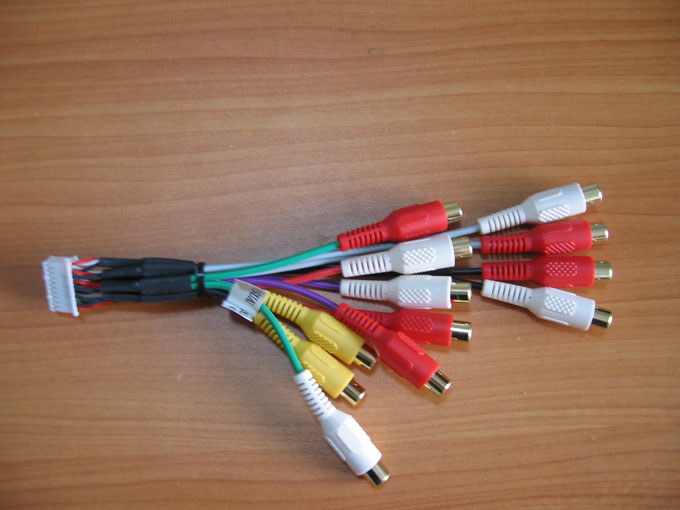

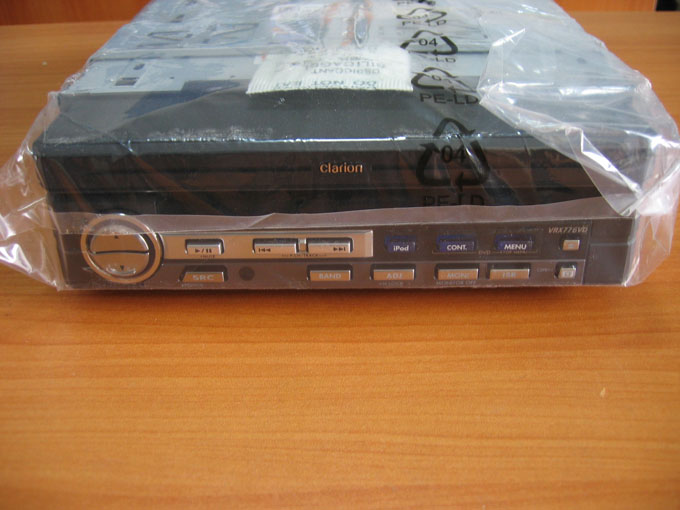

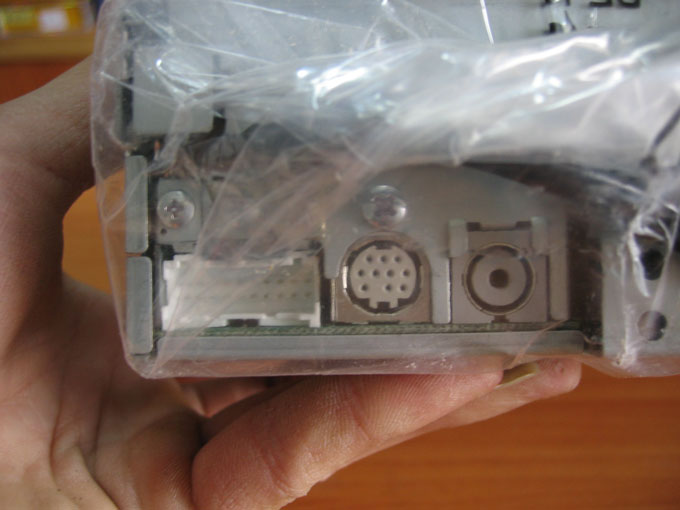

实物照片 |

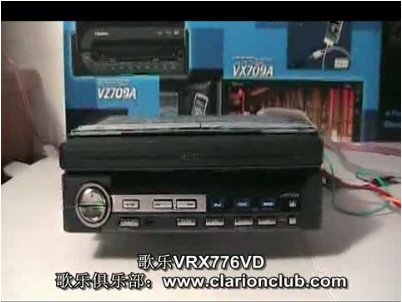

产品视频 |
PDF说明书 |
交易记录 |
用户评价 |
|
|
|
-
可播放DVD±R/DVD±RW/CD-R/CD-RW
-
可对应MP3/WMA格式文件, 并可显示ID3/WMA标签内容
-
1个视频线路输出和2声道音频前置输出供应2区域娱乐空间系统
-
CeNET网络可连控: DVD换碟机、5.1声道解码器、电视调谐器、6碟装CD换碟机
-
AUX输入可对应Bluetooth®(蓝牙)音频/手机传输器BLT370
•尽管采用最新部件组合而成的液晶显示屏具有高达99.99%的像素显示率，但请注意,仍有0.01%或更少的像素可能失真。
•警告:根据法律规定、司机不得在车辆运行时观看配置在驾驶室内的任何显示器上的图像信号。
•本公司不保证目录中的所有产品均可播放CCCD(防拷贝音乐CD)、Hybrid SACD(混合式超级音频光盘)、CD-R/RW和DVD±R/RW。
*可对应iPod录像的机型不能播放混合音乐文件和电影文件的播放列表。
|
|
|
| MONITOR SECTION |
| Screen size (W × H), mm |
154.0 × 87.0 (7 inch) |
| Display type |
Transparent-type TN liquid crystal display |
| Drive principle |
TFT active matrix display |
| Number of pixels |
336,960 |
| VRC video input |
1.0 ±0.2 Vp-p(input impedance 75 Ω) |
| VRC audio input |
130 ±60 mVrms(input impedance 10 kΩ or more) |
| TUNER SECTION |
| Frequency bands |
|
| FM: (MHz) 0.05 MHz steps |
87.0 to 108 |
| AM: (kHz) 9 kHz steps |
531 to 1,629 |
| FM usable sensitivity (dBf) |
9 |
| FM 50 dB quieting sensitivity (dBf) |
15 |
| FM alternate channel selectivity (dBf) |
70 |
| FM stereo separation @ 1 kHz (dB) |
35 |
| FM Stereo freq. resp. @ ± 3 dB (Hz) |
30 to 15,000 |
| DVD SECTION |
| Useable discs |
DVD video/DVD±R/RW |
| Frequency response (Hz) |
20 to 20,000 (48 kHz)(+1 dB,-1 dB) |
| Distortion (%) |
0.01 |
| CD SECTION |
| Wow/Flutter (WRMS) |
Below measurable limits |
| S/N ratio (dB) 1 kHz |
100 |
| Frequency response (Hz) |
20 to 20,000(+1 dB,-1 dB) |
| Dynamic range (dB) 1 kHz |
100 |
| Harmonic distortion (%) |
0.01 |
| AUDIO SECTION |
| Power output |
4 × 27 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 50 × 165 |
| Weight (kg) |
2.4 |
| Power consumption |
4.0 A (at 1 W) |
| Power requirement |
14.4 V DC(10.8 ~ 15.6 V) |
| Speaker impedance |
4Ω(4Ω to 8Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
