| 规格: 2-DIN尺寸CD/SD/MP3/WMA接收器/CeNET连控 |
 |
| 售价: RMB￥3,380.00 元 |
|
|
| |
|
产品概述 |
功能规格 |
实物照片 |

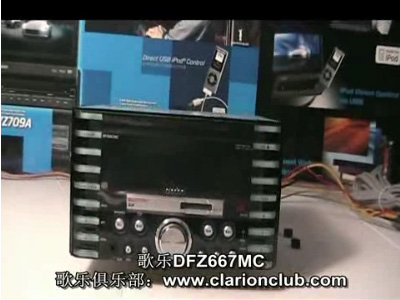

产品视频 |

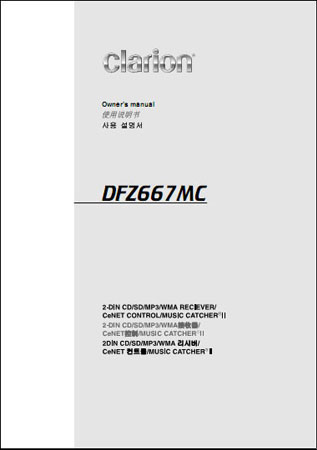

PDF说明书 |
交易记录 |
用户评价 |
|
|
- Screen saver 加接另售的EA1276即可连控iPod®
- MUSIC CATCHER II CD乐曲存储系统和SD插口
- 可对应MP3/WMA格式文件, 并可显示ID3标签内容
- CeNET网络可连控: DVD换碟机、电视调谐器、6碟装CD换碟机和iPod®
广泛的兼容性
Music Catcher II “4 倍速度”数字式录音
|
|
|
| TUNER SECTION |
| Frequency bands |
|
| FM: (MHz) 0.05MHz steps |
87 to 108 |
| MW: (kHz) 9 kHz steps |
531 to 1629 |
| LW: (kHz) 3 kHz steps |
|
| FM usable sensitivity (dBf) |
9 |
| FM 50 dB quieting sensitivity (dBf) |
15 |
| FM alternate channel selectivity (dBf) |
70 |
| FM stereo separation @1 kHz (dB) |
32 |
| FM stereo freq. resp. @ ±3 dB (Hz) |
30 to 15,000 |
| CD SECTION |
| Wow/Flutter (WRMS) |
Below measurable limits |
| S/N ratio (dB) |
100 |
| Frequency response (Hz) |
5 to 20,000 |
| Dynamic range (dB) |
95 |
| Harmonic distortion (%) |
0.01 |
| AUDIO SECTION |
| Power output (+B = 14.4 V) |
4 × 50 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 100 × 156.5 |
| Remote control (W × H × D), mm |
44 × 113 × 13 |
| Weight (kg) |
2.2 |
| Power consumption: less than |
15 A |
| Speaker impedance |
4Ω(4Ω to 8Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
