| 规格: 最大 1500 W，30 CM (12″) 双 4 Ω 音圈低音喇叭 |
 |
| 售价: RMB￥1,800.00 元 |
|
|
| |
|
产品概述 |
功能规格 |

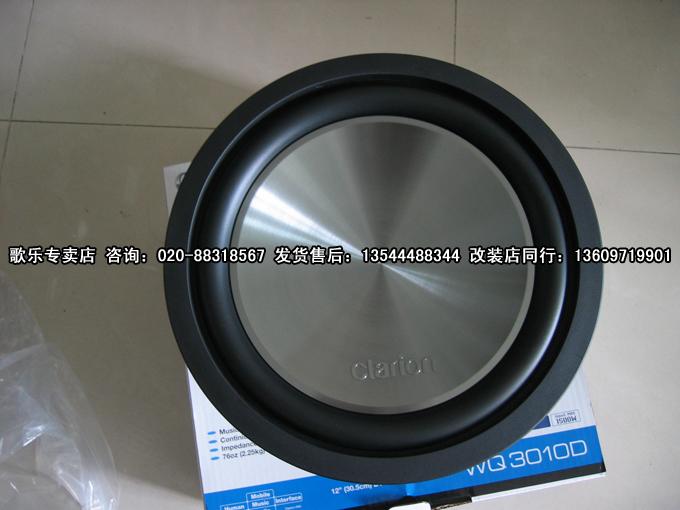

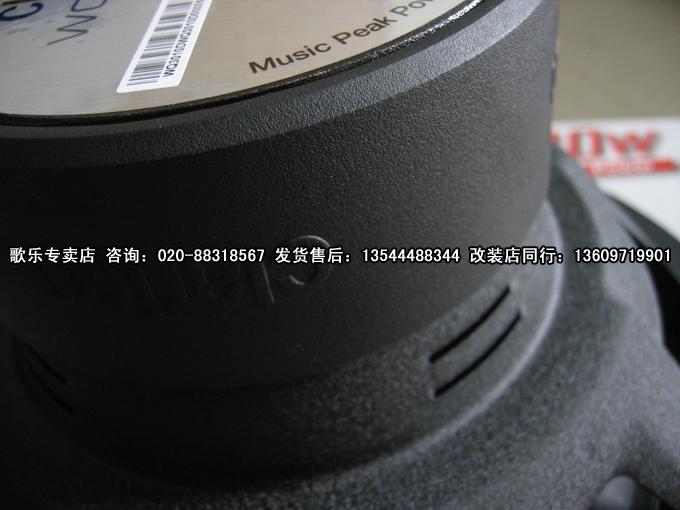

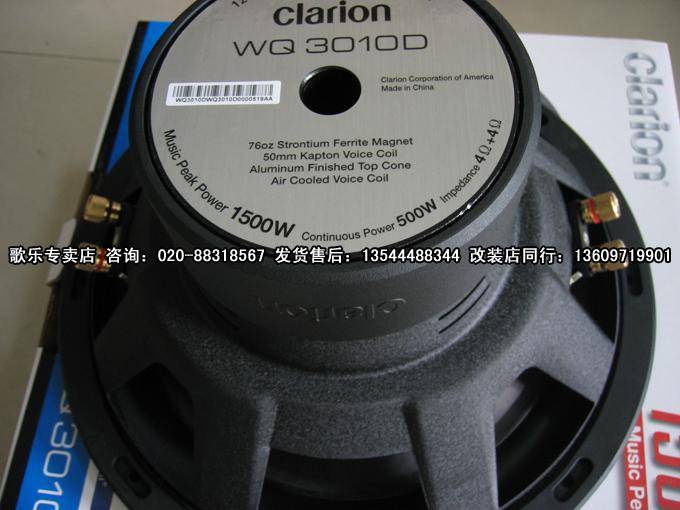

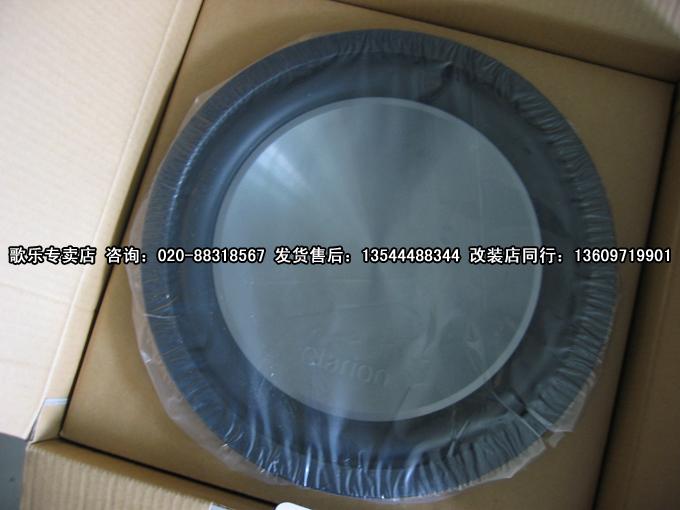

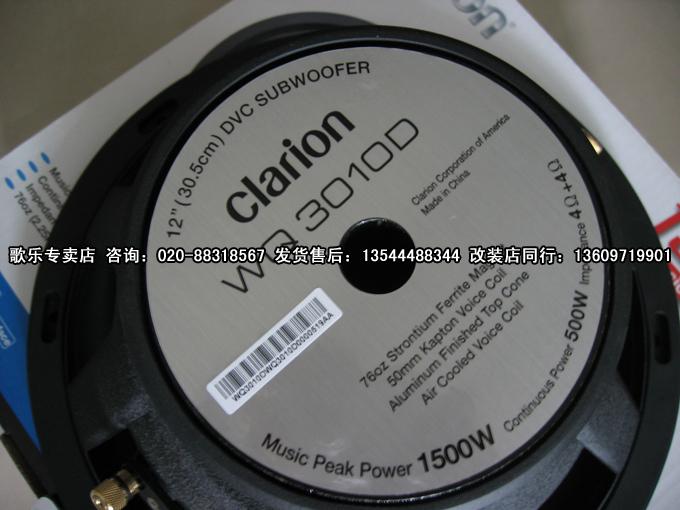

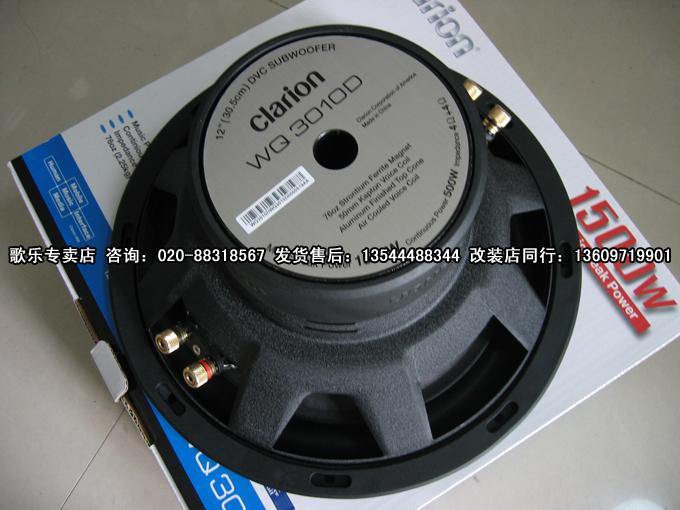

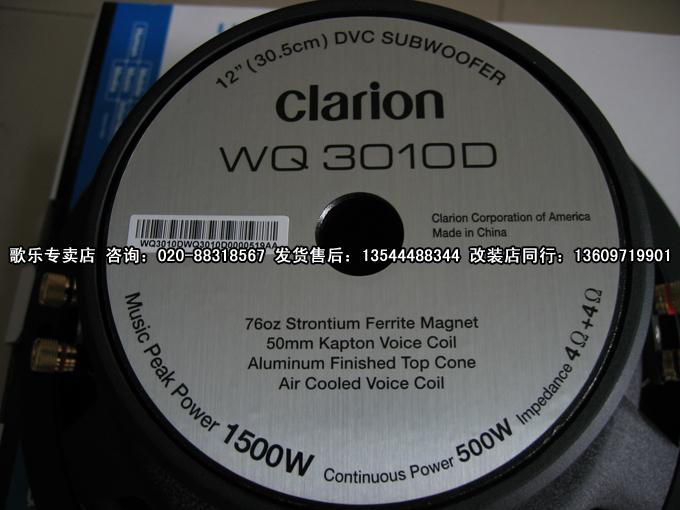

实物照片 |
产品视频 |
PDF说明书 |

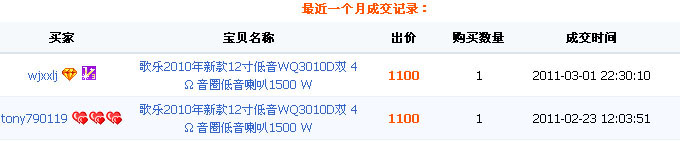

交易记录 |
用户评价 |
|
|
- Max Power Handling : 1500 Watts
- Continuous Power Handling : 500 Watts
- Dual 4-Ohm Heavy Duty Voice Coils

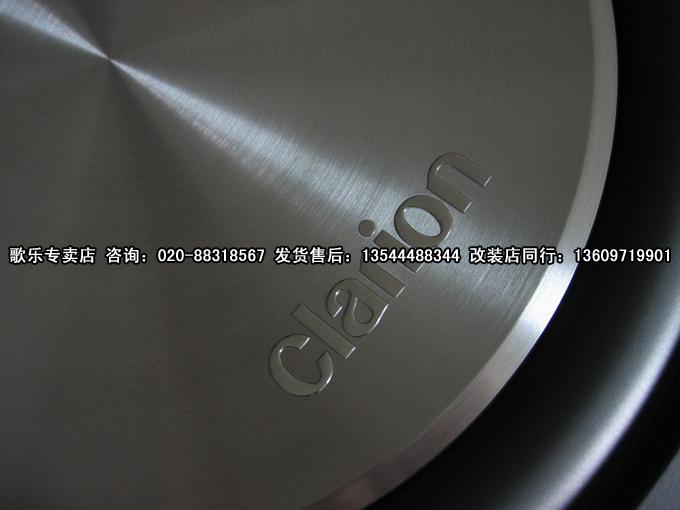

- Aluminumized Composite Dust Cap
- Reinforced FRP/ Paper Cone Design

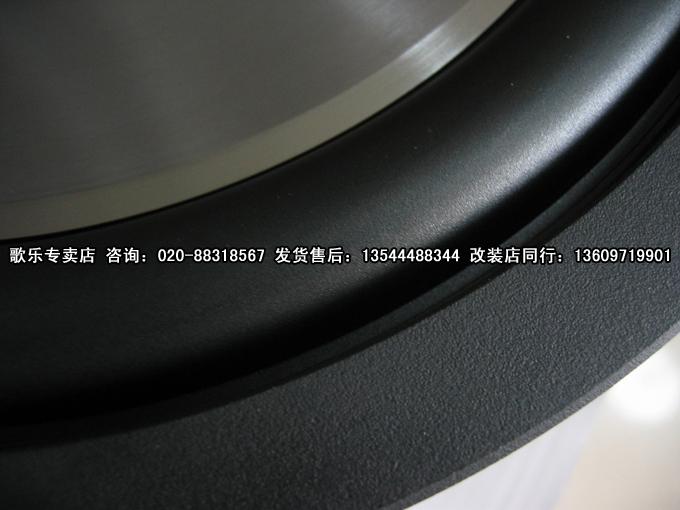

- Nitrile Butadiene Rubber High Excursion Surround
- Dual Strontium Ferrite Magnets
- Hyper Extended Vented Pole Piece
- S.E.T. (Spider Exhaust Technology) Cooling

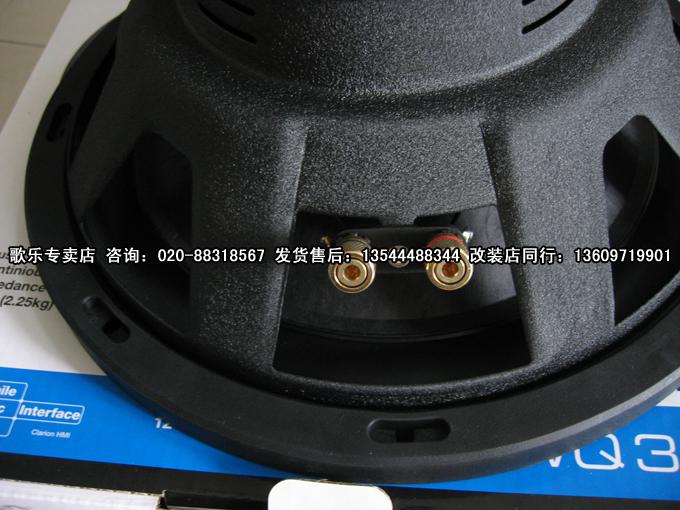

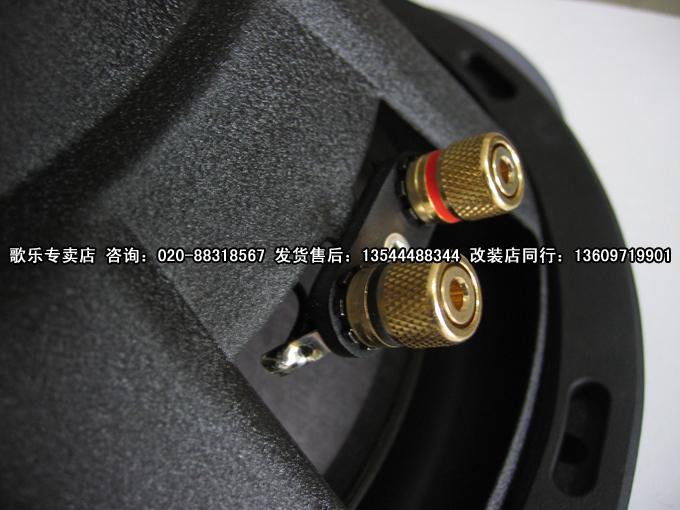

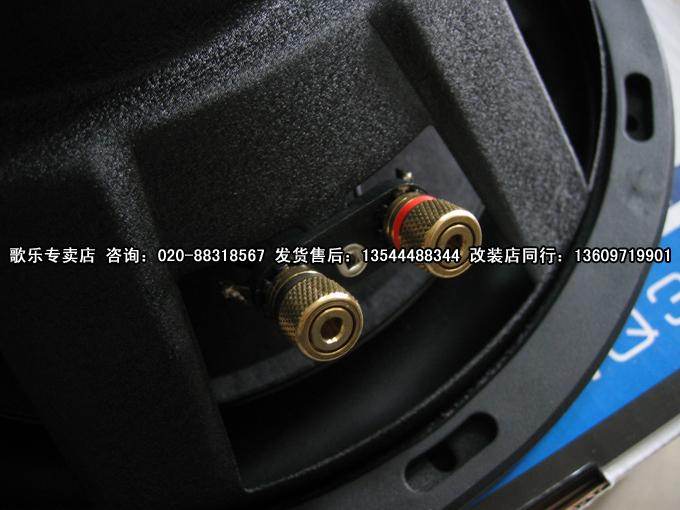

- Dual Gold Plated Terminal Blocks
- Custom Stamped Steel Powder Coated Chassis
- Frequency Response : 30-1000 Hz
- Basket Type : Stamped Steel
- Number of Voice Coils : 2

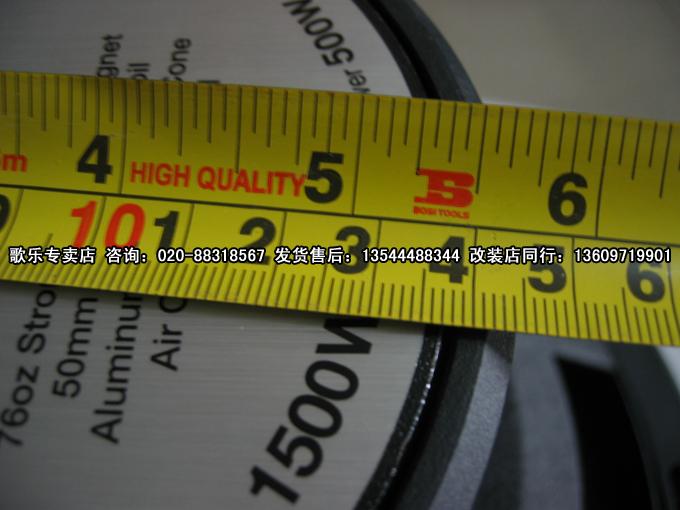

- Outside Dimension : 11-11/16 Inch

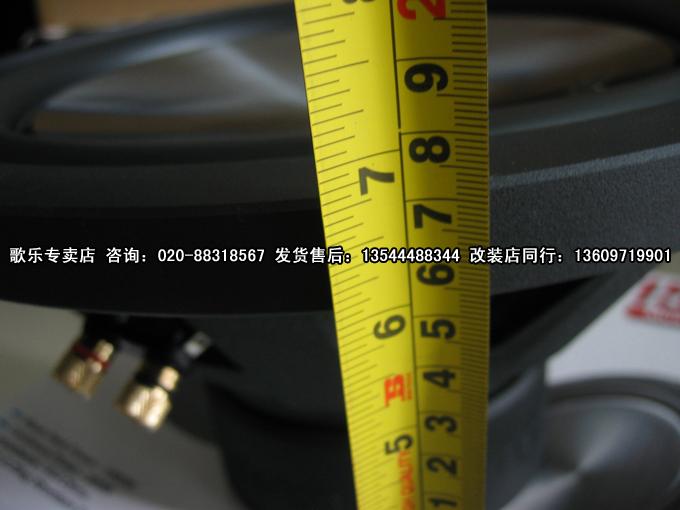

- Mounting Depth : 6-1/8 Inch
- Enclosure Size : 1.1-2.2 ft
|
|
|
| Reproduction system |
Subwoofer |
| Speaker size (mm) |
300 |
| Dual strontium ferrite magnets |
● |
| Polypropylene electrolytic spun aluminum coated dust cap design |
● |
| S.E.T. (Spider Exhaust Technology) cooling |
- |
| Rear vented pole piece |
● |
| Aluminium die-cast frame and cooling spacer for higher power handling |
- |
| 4-ohm heat resistant voice coils |
Dual |
| Kevlar/paper composite cone design |
- |
| Reinforced FRP / Paper cone design |
● |
| Co-polymer composite high excursion surround |
● |
| Nitrile butadiene rubber high excursion surround |
● |
| Dual gold plated block terminals |
● |
| Linear poly-cotton spider with integrated tinsel leads |
- |
| Custom designed die-cast aluminium |
- |
| Custom stamped steel powder coated chassis |
● |
| Hidden screw mounting gasket |
- |
| Frequency response (Hz) |
30-1000 |
| Basket type |
Stamped steel |
| Number of voice coils |
2 |
| Impedance(Ohm) |
4 + 4 |
| Music peak power (W) |
1500 |
| Continuous power (W) |
500 |

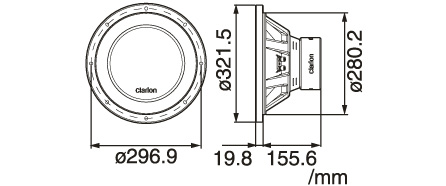

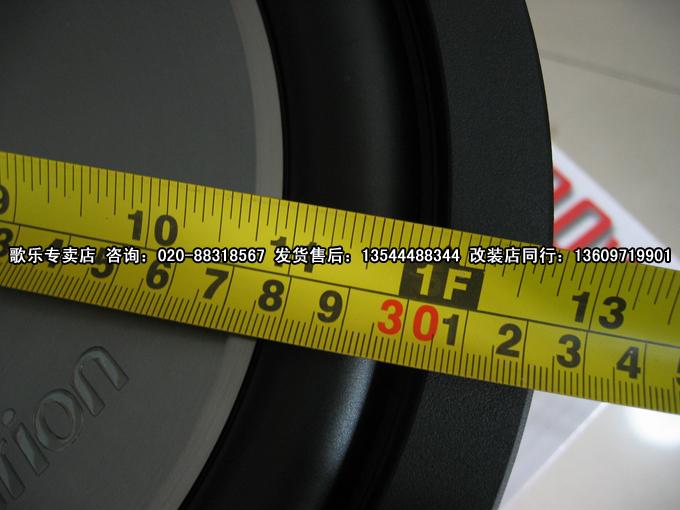

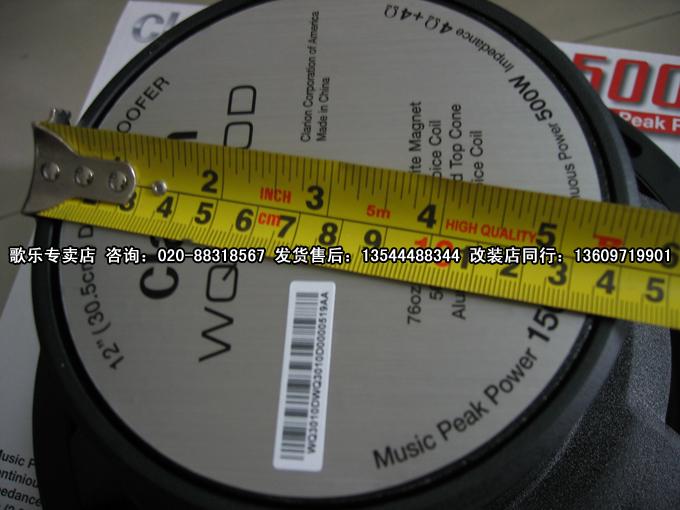

| Outside dimension (mm) |
297 (11-11/16”) |
| Mounting depth (mm) |
156 (6-1/8”) |
| Enclosure size(ft3) |
1.1-2.2 |
|
|
|
|
|
|
|
|
|
|
|
