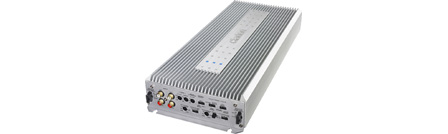

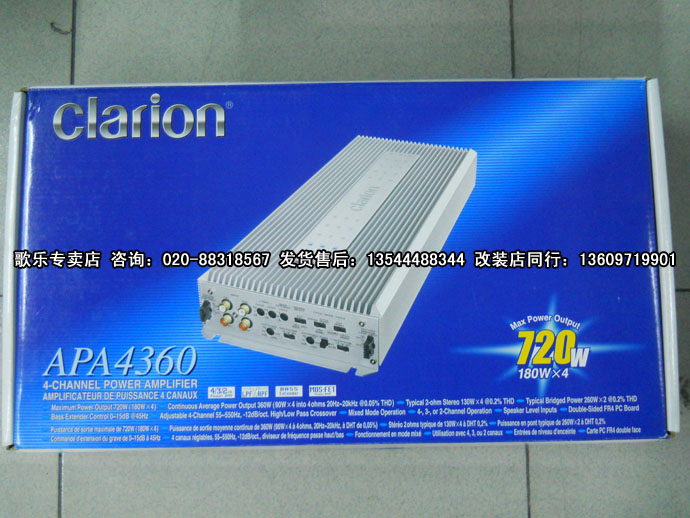

APA4360
规格: 720 W 4/3/2 高音质功率放大器
售价: RMB¥3,300.00 元
APA4360

产品概述 功能规格 实物照片 产品视频 PDF说明书 交易记录 用户评价

FASTER, STRONGER, SMALLER



Clarion amplifiers represent overwhelming power packed into a compact body, providing consolidation of technology to control your music. Count on everything from first class performance, to luxurious design, multiple speaker driving flexibility, and a wide range of installation possibilities to deliver a powerful acoustic space and provide pure sound quality.

Circuit design achieves high quality sound

Circuit design achieves high quality sound



Circuit design achieves high quality sound



Encompassing a host of high quality components, Clarion’s amplifiers take your music to a whole new level. Featuring uncompromising resistance to magnetic noise, the circuit design used by Clarion’s amplifiers allows for easy subwoofer system configurations using its embedded High Pass and Low Pass Filters. What’s more, Clarion’s high-grade, gold-plated block terminals offer low electrical and contact resistance for crystal clear sound. These amps also boast 2-ohm stability for increased power and reliability when connected to speakers with 2-ohm loads. Put simply, Clarion offers a line of amplifiers that boast superior power and versatility.

Space-saving design with high heat dissipation

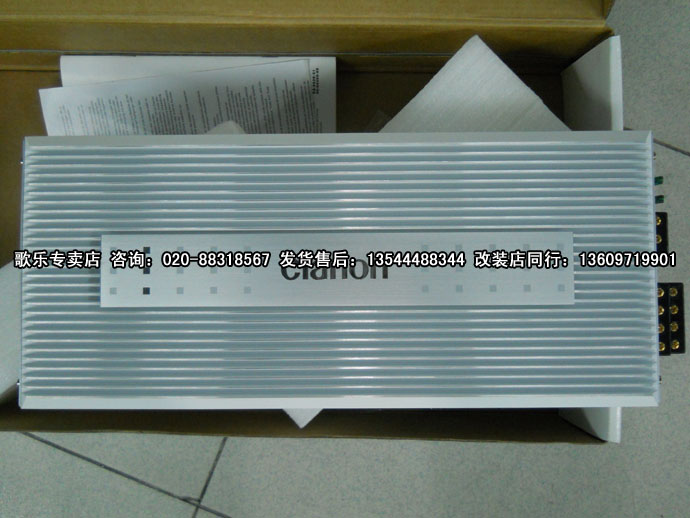

APA Series amps feature a die-cast design with countless heat sinks for high-heat dissipation. This eliminates the need for an internal fan. Also preventing overheating is the amplifier’s circuit design that inhibits heat dispersal. This heat dispersal effect is maximised during consecutive drives for high power in minimal space.

Gapped E core choke coils

Utilised in the power supply circuitry, Gapped E core choke coils offer low impedance, making them resistant to harmful magnetic noise. This results in a more efficient amplifier and a low-noise power supply, which is important for achieving crystal clear sound.

2-ohm stability

Utilising this design for peak performance and unwavering reliability, Clarion's amplifiers can drive lower impedance loads for increased power.


  • 4/3/2 channels bridgeable mode operation
  • Maximum power output: 720 W (4 × 180 W into 4 ohms)
  • Continuous average power output: 360 W (4 × 90 W RMS into 4 ohms)
  • Typical bridged power output: 2 × 260 W @ 0.05% THD
  • Typical 2-ohm stereo power output: 4 × 130 W @ 0.05% THD
  • Bass Extender: 0/+15 dB @ 45 Hz

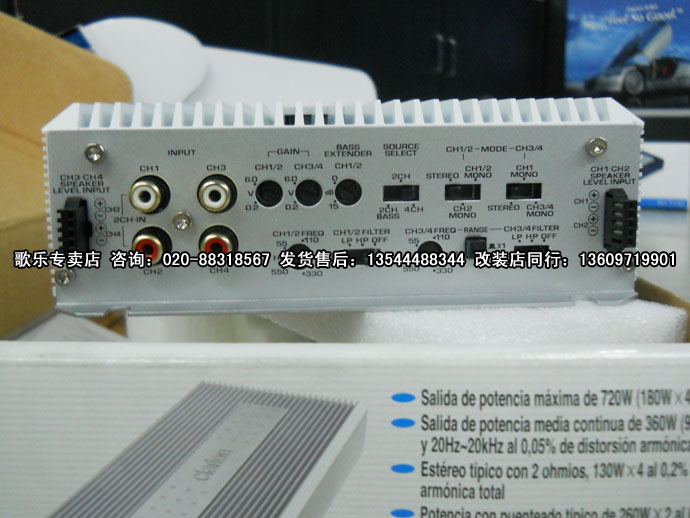

  • Independent front/rear adjustable crossover frequencies (HP/LP): 55 ~ 550 Hz or 550 ~ 5,500 Hz
  • Adjustable line level input: 200 mV up to 6 V
  • Speaker level input
  • Soft mute On/ Off circuitry

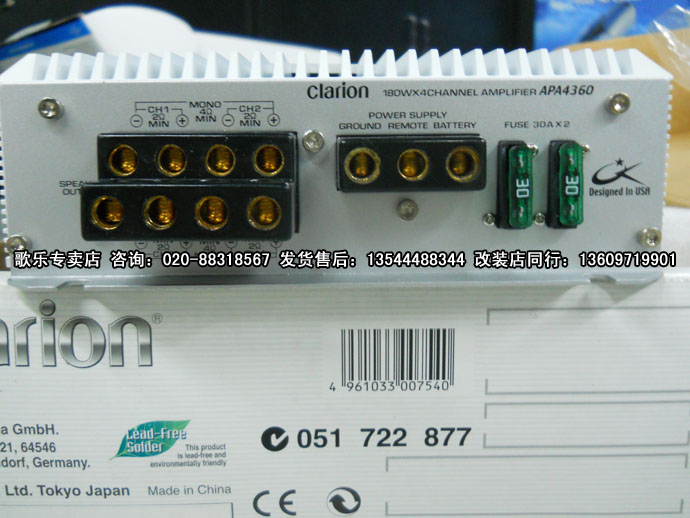

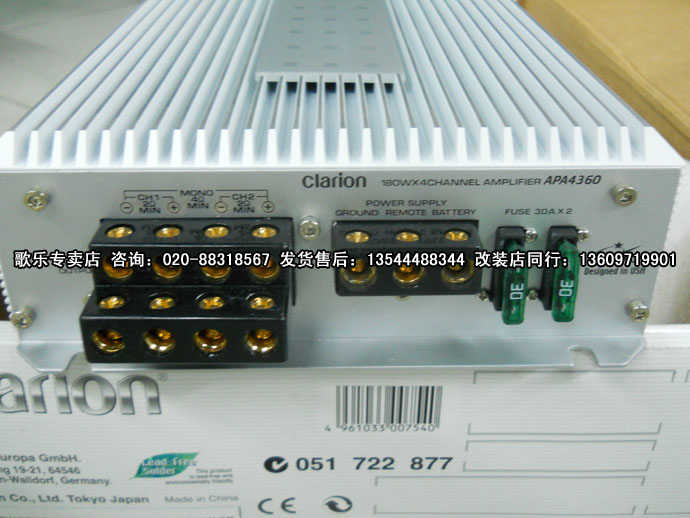

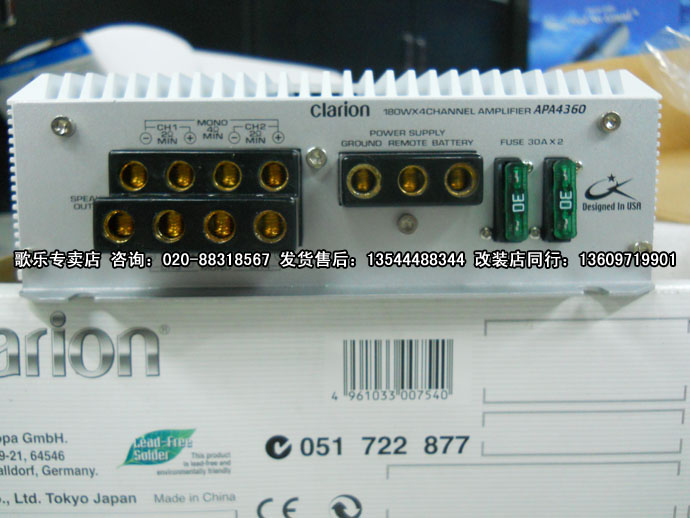

  • Gold plated isolated massive speaker and power supply connectors
  • Dimensions 407 (L) ×165 (W) × 56 (H) mm
 Number of channels  4/3/2
 Maximum power output  720 w
 MOS-FET power supply  ●
 4-ohm  4 × 90 w
 2-ohm  4 × 130 w
 Bridged  2 × 260 w
 2-ohm stable  ●
 Variable bass boost control  ●
 Gold-plated connections  ●
 Speaker level input  ●
 Dimensions (L x W x H )  407 × 165 × 56 mm
